European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer

Name: European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer
Brand: INWAY
Price: 1 USD

China European Standard Long Type Sintered Metal Bearings Guide Pin Steel Sintered With Layer wholesale

Brand Name : INWAY

Model Number : INW 81.81

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 tons/month

Delivery Time : 5 work days or based on quantity

Packaging Details : Carton+pallet

Material : Steel sintered with layer

Application : Guide pin

Size : Customized

Standard : ISO9448-6

Type : stright

Precision rating : High Precision

Contact Now

European Standard Long type Sintered Metal Bearings Guide Pin Steel Sintered With Layer

A light tap is all that is required to locate the bushing´s register dia-meter in the bushing hole. The bushing is then held ﬁrmly in place with clamps and screws.
All INW bushings are equipped with ﬁgure 8 oil grooves and lubri-cation ﬁttings.The sintered bronze pores act as small oil reservoirs, so DANLY Sintered Bronze Bushings are more forgiving if maintenance has been overlooked. However, for best results we recommend regular, periodic lubrication with a high viscosity oil. INW has a specially selected oil available upon request.

The Advantages of Sintered Bronze Bushings

Thicker Bronze:The sintered bronze in bushings is substantially thicker than the plating technology it replaces.

Porous Surface:

Hold the lubrication oil where you need it most, to resist wear. Sintered bronze is porous bronze, up to 40% porosity.

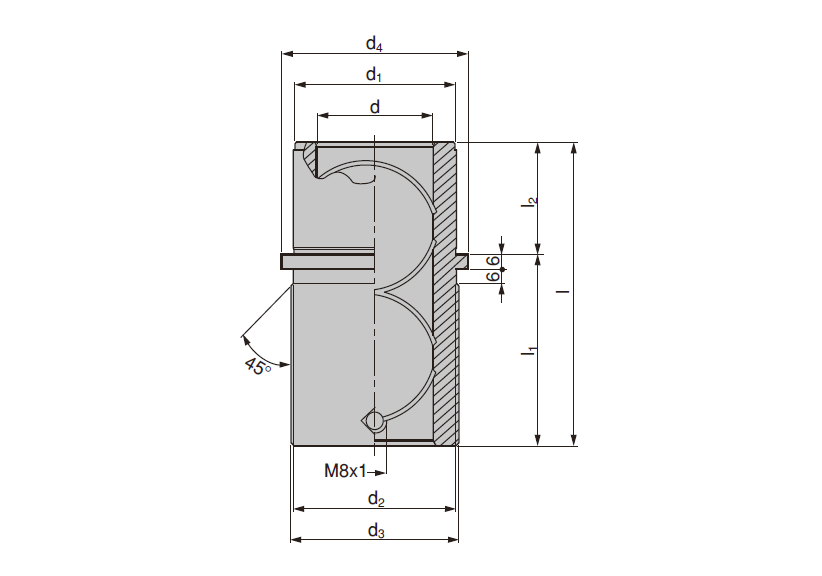

Spec. information :

Code No.	d H5	d1 j6	d2	d3	d4	L	l1	l2
INW-019-043-02	19	32	32	39	40	43	20	23
INW-019-059-02	19	32	32	39	40	59	36	23
INW-020-043-02	20	32	32	39	40	43	20	23
INW-020-059-02	20	32	32	39	40	59	36	23
INW-024-059-02	24	40	40	46	48	59	36	23
INW-024-079-02	24	40	40	46	48	79	56	23
INW-025-059-02	25	40	40	46	48	59	36	23
INW-025-079-02	25	40	40	46	48	79	56	23
INW-030-075-02	30	48	48	53	56	75	45	30
INW-030-093-02	30	48	48	53	56	93	63	30
INW-032-075-02	32	48	48	53	56	75	45	30
INW-032-093-02	32	48	48	53	56	93	63	30
INW-038-082-02	38	58	58	63	66	82	45	37
INW-038-108-02	38	58	58	63	66	108	71	37
INW-040-082-02	40	58	58	63	66	82	45	37
INW-040-108-02	40	58	58	63	66	108	71	37
INW-048-097-02	48	70	70	77	80	97	50	47
INW-048-127-02	48	70	70	77	80	127	80	47
INW-050-097-02	50	70	70	77	80	97	50	47
INW-050-127-02	50	70	70	77	80	127	80	47
INW-060-116-02	60	85	85	92	95	116	56	60
INW-060-150-02	60	85	85	92	95	150	90	60
INW-063-116-02	63	85	85	92	95	116	56	60
INW-063-150-02	63	85	85	92	95	150	90	60
INW-080-120-02	80	105	105	115	118	120	60	60
INW-080-150-02	80	105	105	115	118	150	90	60
